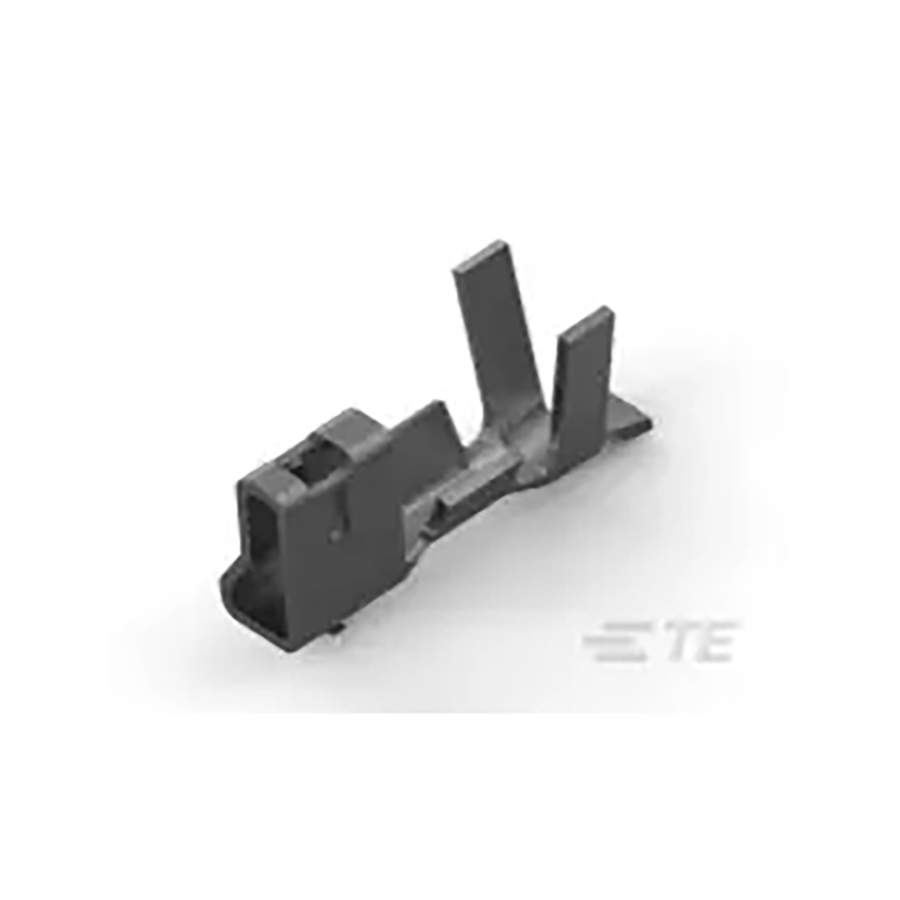

179609-1
Manufacturer:
TE Connectivity
Mfr.Part #:
179609-1
Datasheet:
Description:
Headers and Wire Housings Cable Socket
| Parameter | Value |
|---|---|
| Length | 5.9 mm |
| Width | 2.2 mm |
| Termination | Crimp |
| Max Operating Temperature | |
| Min Operating Temperature | |
| Height | 2.7 mm |
| Material | Bronze |
| Packaging | Reel |
| Voltage Rating | 125 V |
| Depth | 2.2 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Phosphor Bronze |
| Pitch | |
| Current Rating | 2 A |
| Orientation | Straight |
| Operating Supply Voltage | 125 V |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Gender | Socket (Female) |
| Shielding | Unshielded |
| ELV | Compliant |
| Connector Type | Socket |
| Wire/Cable Gauge | 30 AWG to 26 AWG |
| Number of Positions | |
| Number of Rows | |
| Row Spacing | |
| Wire/Cable Type | Discrete |
| Circuit Application | Signal |
| Connector System | Wire-to-Board |
| Contact Style | Socket |
| Contact Resistance | 20 mΩ |
| Contact Current Rating | 2 A |
| Wire Gauge (Max) | 30 AWG |
| Wire Gauge (Min) | 26 AWG |
| Insulation Diameter | 1.3462 mm |
| Plating Thickness | 800 nm |
| Contact Gender | Female |
| Mating Post Length | |
| Contact Shape | Rectangular |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Sealable | No |
| Termination Post Length | |
| Termination Style | Crimp |
Stock: 1978
Distributors
pcbx
pcbxUnit Price$0.04270
Ext.Price$0.04270
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.04270 | $0.04270 |
| 10 | $0.02135 | $0.21350 |
| 50 | $0.01642 | $0.82100 |
| 100 | $0.01455 | $1.45500 |
| 500 | $0.01290 | $6.45000 |
| 1000 | $0.01201 | $12.01000 |
| 3000 | $0.01118 | $33.54000 |
| 5000 | $0.01041 | $52.05000 |
| 10000 | $0.00970 | $97.00000 |
| 30000 | $0.00887 | $266.10000 |
| 50000 | $0.00812 | $406.00000 |
